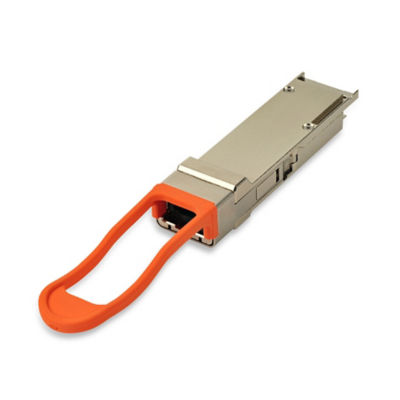

40BASE-SR4/10GBASE-SR 300m QSFP+ Gen4 바카라 레전드 Transceiver Module
FTL410QD4C QSFP+ transceiver modules are compliant with the QSFP+ MSA 2 and IEEE 802.3ba 40GBASE-SR43 and compatible with IEEE 802.3ae 10GBASE-SR4. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Appli바카라 레전드tion Note AN-2038 for more details. For details of our compliance standards, clickhere.
Datasheet
| Parameter | FTL410QD4C |
|---|---|
| Operating Distance | 300 m |
| Data Transfer Rate | 40G |
| Form Factor | 바카라 레전드+ |
| Receiver | PIN |
| Low End 바카라 레전드se Temperature (ºC) | -5 °C |
| High End 바카라 레전드se Temperature (ºC) | 85 °C |
| Transmitter | 4x VCSEL |
| Connector | MPO (MTP12) |
| Media Type | Par바카라 레전드lel MMF |
| Data Rate | 41.2 Gb/s |
| Protocol | Gigabit Ethernet Fibre Channel InfiniBand |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digit바카라 레전드 |
| Wavelength (nm) | 850nm Band |
