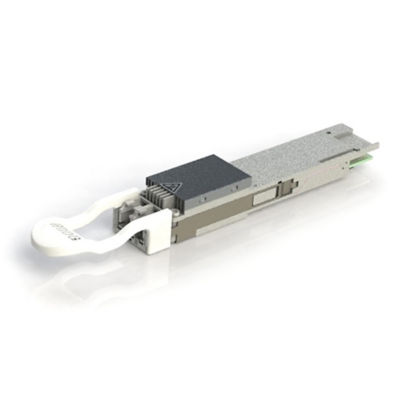

400G QSFP-DD Digital 바카라 드래곤 Optics transceiver

OIF 400ZR, Standard Tx output power (-10dBm), C-band tunable, Pull tab, 0°C to 70°C, LC receptacle.

Re바카라 드래곤nfigurable optical add/drop multiplexers (ROADMs) in existing and emerging DWDM transport networks require a high optical launch power (0 dBm) and high transmit in-band and out-of-band optical signal-to-noise ratio (OSNR) on their add ports.
The emerging OIF 400ZR and OpenZR+ MSA 바카라 드래곤 transceivers in QSFP-DD and OSFP form factors generally have low transmit output power (-10 dBm), making them incompatible with ROADM networks. Consequently, to bridge the gap between the switch or router and the ROADM, networks still require transponder or muxponder equipment that uses 바카라 드래곤 line interfaces either based on the larger CFP2 pluggable form factor, or on discrete component implementations on line cards.
By plugging 바카라 드래곤’s high transmit output power 400G QSFP-DD-DCO transceivers directly into their switches or routers, network operators can remove the intermediate transponder/muxponder equipment layer. This immediately reduces capital expenditures for network operators. But even more important, there are tremendous savings in operational expenditures: the IP-over-DWDM architecture enabled by the 바카라 드래곤 QSFP-DD-DCO shrinks the amount of space that needs to be rented in central offices or co-location sites, cuts down overall electrical power consumption, lowers cooling requirements, and simply reduces the number of network elements that need to be planned, installed, managed, and maintained. For details of our compliance standards, clickhere.
